Drainage systems are responsible for carrying wastewater and surface water away from buildings and land.

In the UK, these systems vary depending on property age, location, and how the surrounding drainage network was originally designed.

This page explains how UK drainage systems are typically laid out, the difference between foul and surface water drainage, and where responsibility and common failure points usually sit.

It is intended as a practical reference for contractors, homeowners and tenants, training providers, and property managers or owners who want a clear understanding of how drainage systems work in practice.

This guide focuses on system layout and function rather than specific repairs or products, and is designed to act as a starting point for understanding more specific drainage issues.

What Is a Drainage System?

A drainage system is the network of pipes, channels, chambers, and outlets that remove wastewater and surface water from a property or area.

Its primary purpose is to move water away safely and efficiently, preventing flooding, contamination, and structural damage.

In domestic and commercial properties, drainage systems are usually hidden from view, running below floors, underground, or externally around buildings.

Despite this, the layout and condition of the system has a direct impact on how well a property functions and how easily problems can be identified and resolved.

UK drainage systems are typically designed to handle two different types of water — wastewater from inside a property and rainwater from roofs and hard surfaces — which are often managed separately.

Foul Water vs Surface Water

UK drainage systems are usually designed to manage two distinct types of water: foul water and surface water. Understanding the difference between the two is essential, as they often follow different routes and are subject to different rules and responsibilities.

Problems often arise when foul and surface water systems are incorrectly connected, overloaded, or misunderstood, particularly in older properties or areas where drainage layouts have changed over time.

Combined and Separate Drainage Systems

In the UK, drainage systems are generally designed as either combined systems or separate systems, depending largely on when an area was developed and how the wider sewer network was constructed. Both types are still in use today.

In practice, drainage layouts are not always as clear-cut as original designs suggest. Older properties may have been altered over time, extensions added, or surface water connections changed, which can result in mixed or misconnected systems. For this reason, assumptions about whether a system is combined or separate are not always reliable without inspection.

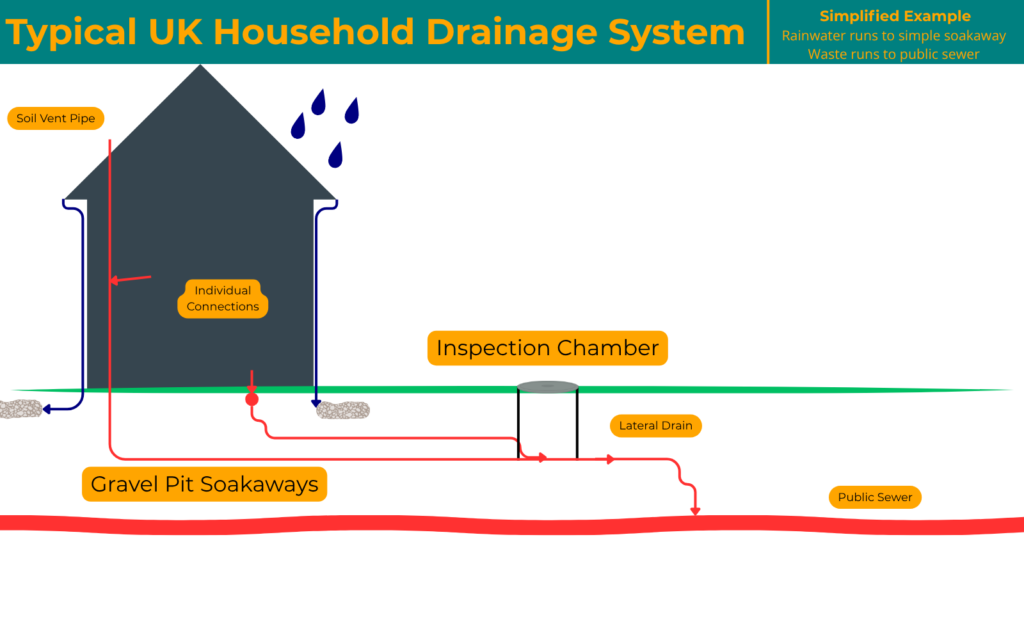

Typical Drainage Layout Around a Property

A typical UK property drainage system follows a predictable layout, even though the exact details vary with age, location, and construction.

Understanding this general arrangement helps explain where problems tend to arise and how drainage systems connect to the wider network.

Wastewater generated inside a property is carried away through internal pipework, which usually runs below floors or within walls before exiting the building.

Once outside, these pipes connect to underground drains that transport foul water toward inspection chambers, shared drains, or the public sewer.

Surface water from roofs, patios, and other hard surfaces is collected separately through gutters, downpipes, and yard gullies.

Depending on the system in place, this water may discharge to a soakaway, surface water sewer, watercourse, or, in older systems, into a combined sewer.

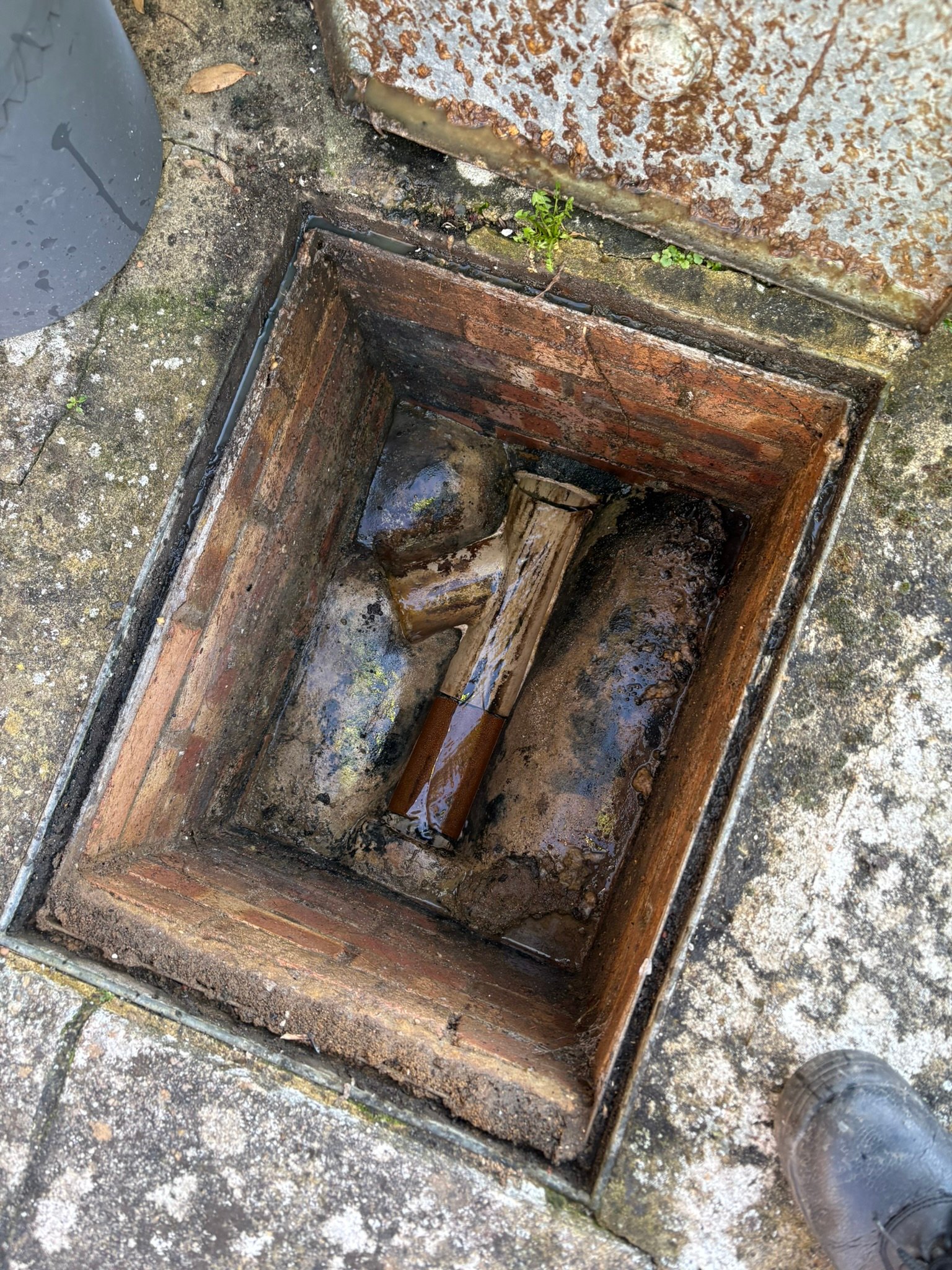

Along the external drainage runs, access points such as inspection chambers and rodding points are installed to allow the system to be checked and maintained.

Changes in direction, junctions between pipe runs, and transitions between private and shared drainage are common locations for these features.

Although layouts vary, drainage systems are generally designed to rely on gravity, meaning pipe gradients and flow direction are critical.

Areas where gradients change, pipe materials differ, or connections have been altered over time are often where issues first become apparent.

Specialist and Non-Domestic Drainage Systems

While most domestic and general commercial properties rely on standard foul and surface water drainage systems, some sites operate specialist drainage systems designed to manage specific risks or waste types.

These systems are most commonly found in hospitals, laboratories, industrial facilities, and research environments.

Specialist drainage systems may be used where wastewater contains chemical contaminants, process effluent, or materials that require controlled handling before discharge. In such environments, drainage runs may be clearly identified, physically segregated from standard systems, and subject to additional treatment, monitoring, or containment measures.

Because of their purpose, specialist systems are often governed by site-specific design, regulatory requirements, and operational controls rather than standard domestic drainage practice.

The assumptions that apply to typical drainage layouts — including pipe materials, discharge routes, and responsibility boundaries — may not apply.

This guide focuses primarily on typical UK drainage systems used in domestic and general commercial settings.

Specialist systems are referenced here for context and completeness, but are covered separately due to their complexity and regulatory oversight.

In the UK, responsibility for drainage systems typically changes at specific points along the drainage run, depending on whether the system serves a single property or is shared. Understanding these boundaries is important, as responsibility determines who is expected to maintain, repair, or investigate drainage issues.

In general, property owners are responsible for drainage within the boundary of their property up to the point where drains connect with shared systems or public sewers.

Where drainage serves more than one property, responsibility may be shared or transferred, and in most cases lies with the local water authority.

Responsibility boundaries are not always obvious on site.

Drain layouts may have been altered over time, records may be incomplete, and access points do not always align neatly with ownership or responsibility.

For this reason, assumptions about responsibility can be misleading without proper reference or confirmation.

A more detailed explanation of drainage responsibility, including private drains, shared drains, lateral drains, and public sewers, is covered separately.

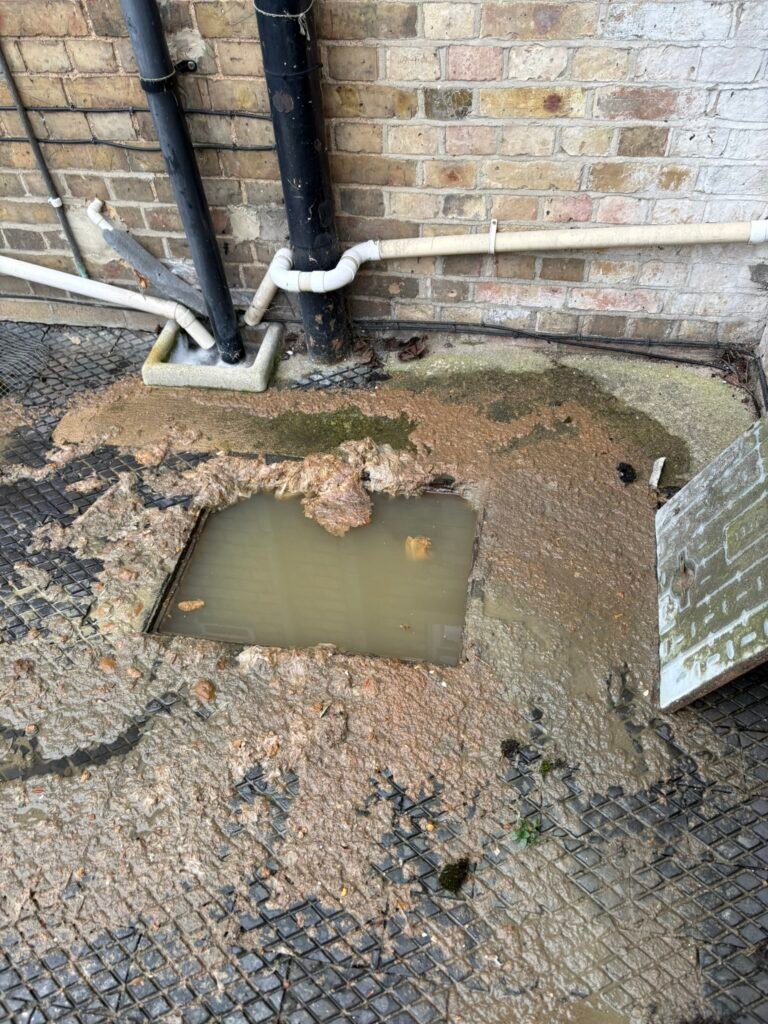

Where Problems Most Commonly Occur

Drainage problems tend to occur at predictable points within a system, often where design, age, usage, or later changes affect how water flows. These locations are not faults in themselves, but areas where stress on the system is naturally higher.

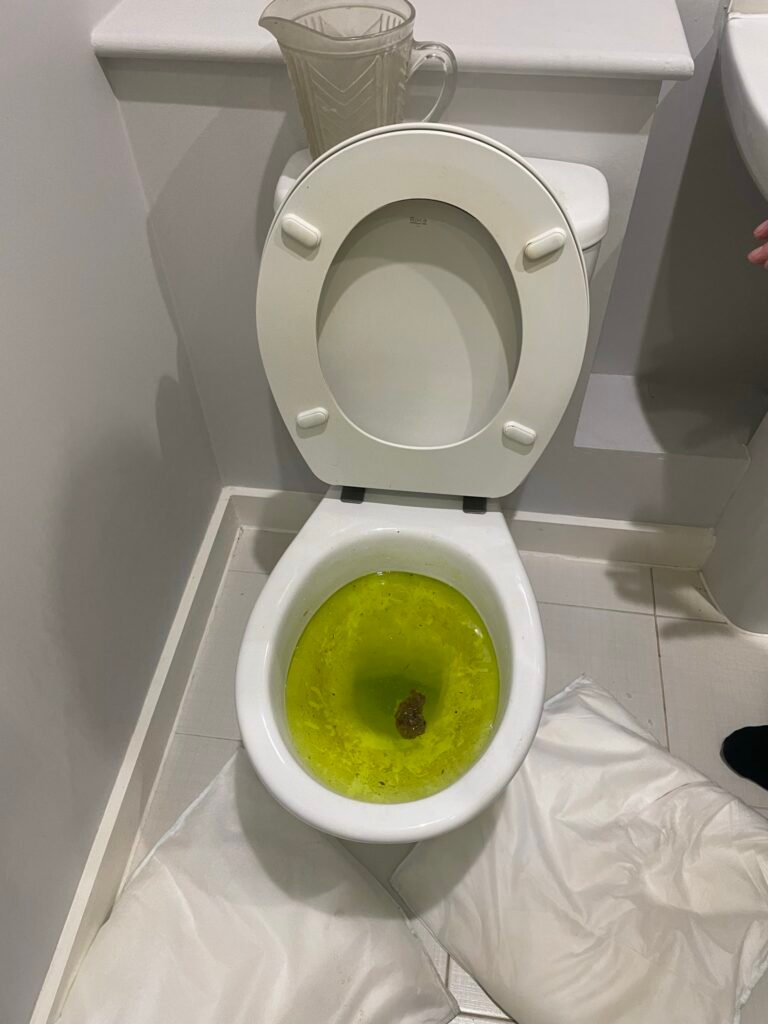

While problems tend to occur at specific points within drainage systems, the symptoms they produce — such as slow drainage, smells, or flooding — can vary. These are covered separately to avoid confusing causes with effects.

How This Works in Practice

Although drainage systems are designed to follow clear principles, real-world layouts are often shaped by decades of alterations, extensions, and changing use.

As a result, the way a system behaves does not always match what might be expected from its original design.

In many properties, accurate records of drainage layouts are unavailable or incomplete. Over time, buildings may be extended, surfaces changed, or appliances added, sometimes without clear documentation of how drainage was affected.

This can make it difficult to understand how a system is arranged based on visible features alone.

Modern living also places different demands on drainage systems than those they were originally designed for.

Changes in household behaviour, increased water use, and the introduction of products that do not break down easily can all place additional strain on pipework, particularly in older systems.

For these reasons, assumptions about drainage systems — such as their route, capacity, or condition — are not always reliable without understanding the underlying layout and how the system has evolved over time.

Common Misunderstandings

Drainage layouts are always clear and consistent
In practice, drainage systems often reflect the age of a property, later alterations, and changes in use. Two neighbouring properties can have very different layouts, even if they appear similar above ground.

All wastewater and rainwater follow the same route
Foul water and surface water are frequently managed separately, particularly in newer systems. Confusion between the two can lead to incorrect assumptions about where water is supposed to go and why problems arise.

If a system is blocked, something must be broken
Blockages and flow issues do not always indicate structural failure. Many occur at predictable stress points within otherwise intact systems, especially where usage patterns or loading have changed over time.

Visible access points show the full extent of the system
Inspection chambers, gullies, and rodding points provide access, but they do not always reveal the complete route, condition, or connections within a drainage system. Important sections may be hidden or undocumented.

Modern properties do not experience drainage problems
While newer systems are designed to current standards, they are still affected by installation quality, maintenance, and usage. No drainage system is immune to issues if conditions change.
